Truck Loading System 3500 kg

Product Introduction

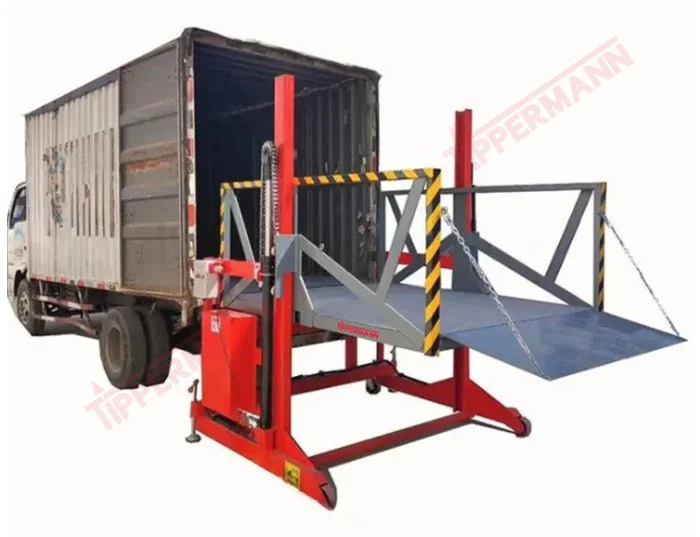

The Tippermann Movable Dock Leveller (TMDL-4000) is an advanced loading and unloading solution designed for seamless cargo transfer between trucks, containers, and warehouse floors. Built for versatility, efficiency, and safety, this high-cycle Movable Dock Leveller is equipped with a heavy-duty hydraulic system, ensuring smooth operation even in demanding industrial environments. Its portable design enhances warehouse productivity by reducing manual labor and downtime, making it an essential asset for logistics, distribution centers, and manufacturing units.

Product Characteristics

•  Load Capacity: Upto 4000 Kgs
•  Maximum Lifting Height: 1800mm
•  Platform Size: 1600mm x 2000mm
•  Ramp Size: 1600mm x 550mm
•  Lifting Speed: 300mm/s
•  Drive System: Hydraulic
•  Self-Weight: 800 Kgs
•  Paint Finish: Powder Coated
•  Standard Colors: Red/Yellow/Black

Our USP / Product Benefits & Advantages

Our Hydraulic Features

•  Hydraulic Power Pack: 5 HP AC motor, high-performance unit for smooth operation.
•  Hydraulic Cylinder: Custom-designed heavy-duty cylinder for high cycle operations.
•  Hydraulic Hose: 1/4” R2 Dunlop/Aeroquip hose for reliable hydraulic flow.
•  Hydraulic Oil: H-68 grade Shell oil for long-lasting, efficient performance.

Electrical Specifications

•  Power Pack: 5HP AC motor
•  Control Voltage: 12V
•  Electrical Components: Schneider push buttons, fuse box, and cables
•  Battery Cut-Off Switch: Manual 2-directional switch by Hella

Ease of Installation

•  Quick Setup: Designed for easy transportation and placement at any loading/unloading site.
•  Minimal Infrastructure Requirement: No need for permanent installation, allowing flexibility in warehouse operations.
•  Plug & Play Operation: Simple push-button controls with manual override facilities for immediate usability.

Finish & Maintenance

•  Powder Coated Surface: Ensures a durable, corrosion-resistant finish for long-lasting performance.
•  Low Maintenance Design: Built for rough industrial use with minimal upkeep requirements.
•  Color Options: Available in Red, Yellow, and Black as per standard.

Additional Platform Features

•  Auto-Locking System: Prevents accidental movements during operation.
•  Spark Safety Fuse Box: Ensures electrical safety.
•  Multipoint Interactive Control: Up/Down swing control with an emergency button pendant switch.
•  Speed & Pressure Control: Adjustable working pressure and manual override capabilities.

Why Choose Us?

•  India’s No. 1 Manufacturer of tail lifts and truck-mounted material handling solutions.
•  100% In-House Manufacturing with vertical integration of hydraulic, mechanical, and electrical components.
•  Trusted Worldwide – Tippermann products are exported across 6 continents and 10+ countries.
•  After-Sales Support: PAN India service network & independent distributors worldwide.
•  Warranty: 1-2 Years against any manufacturing defects.
